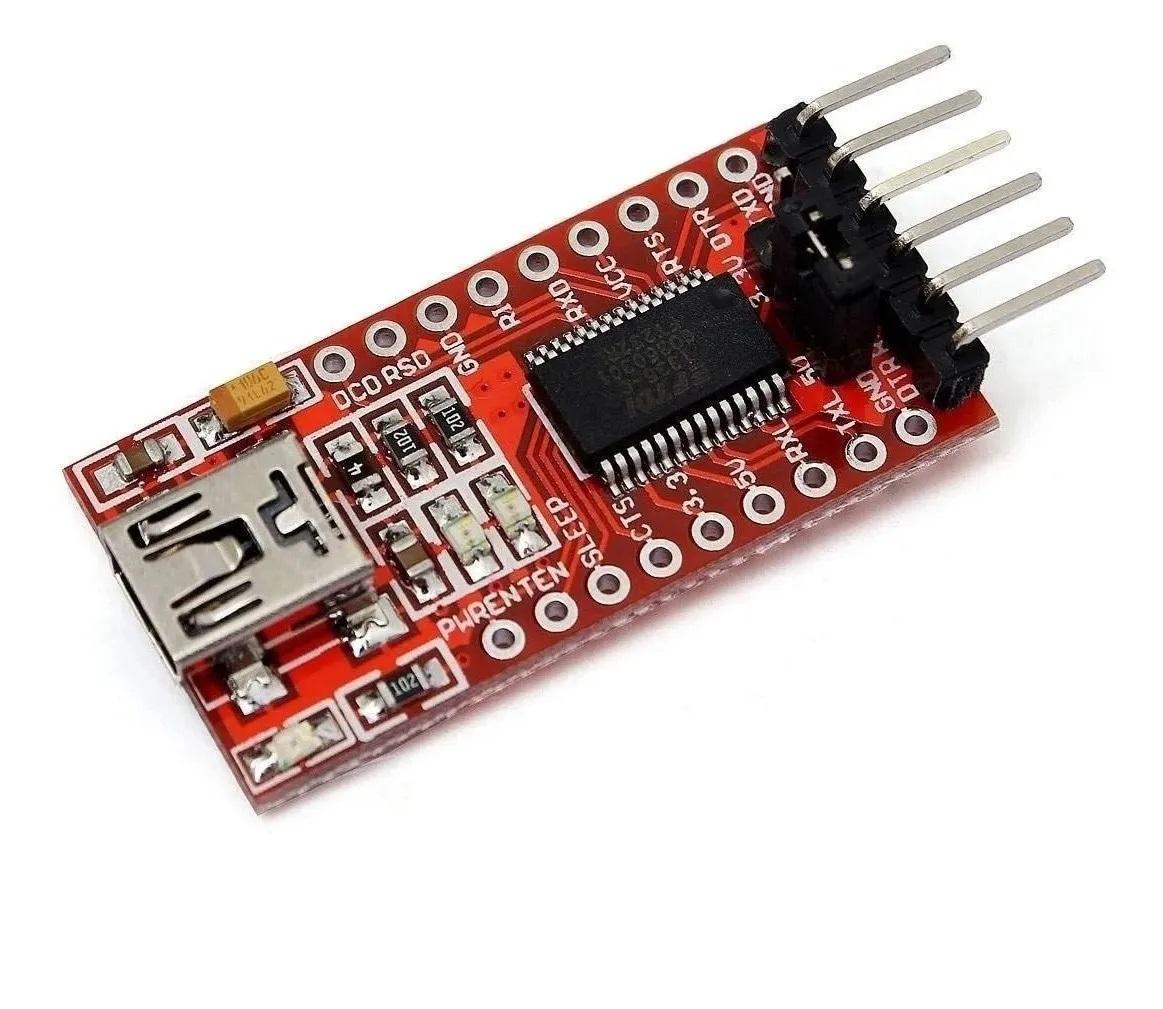

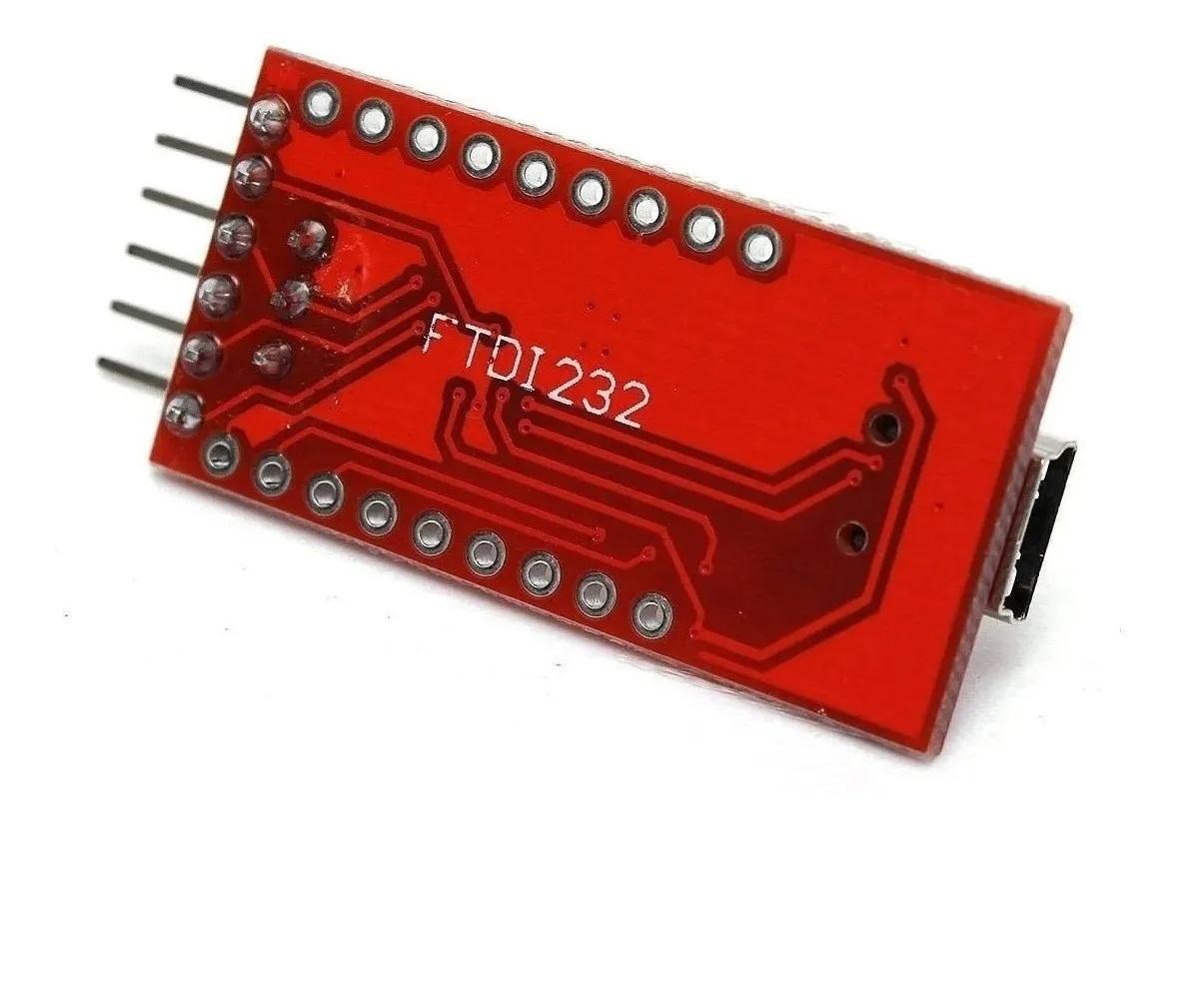

Conversor Adaptador Ft232rl 3.3v 5.5v Ftdi B A Ttl Adaptador Serial

Código: 6630

Descripción:

3.3V, 5V chipset FT232RL

Alimentación USB

Indicador de la comunicación transmisor-receptor RXD/TXD

PIN definición: DTR, RXD, TX, GND, VCC, CTS

Paso: 2.54 mm

Tamaño: 36mm(length)*17.5mm(width)

Chip: FT232RL

Draw out all signal port of FT232RL chip.

RXD/TXD transceiver communication indicator.

USB power supply, can choose 5V or 3.3V ,set by jumper.

With over current protection, using 500MA self-restore fuse.

Pin definition: DTR,RXD,TX,VCC,CTS,GND

Pitch:2.54mm

Module size:36mm(length)*18mm(width)

Interface: Mini USB
